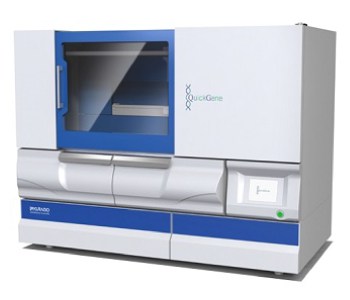

Kurabo Automated Nucleic Acid Isolation System QuickGene-Auto240L

QuickGene-Auto240L uses a patented porous membrane to realize a quick and high quality, high yield in nucleic acid extraction. And this is the first automated system using QuickGene unique membrane production technology to isolate 2ml whole blood genomic DNA from primary tube samples to final DNA storage tubes. Automated the previous manual labor to reduce user’s burden and support their high throughput in routine analytical work.

Automated large volume whole blood DNA extraction

Completely automate the DNA extraction process from primary tube to final DNA storage tubes, ensuring a cross-contamination-free and no human error process.

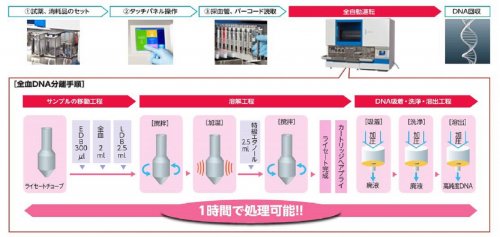

Automate “Sample transfer from primary tube”, “Making lysate”, “DNA Binding”, “DNA Washing” and “DNA Elution” under samples tracking. Perform DNA isolation of 24 samples within approx. 1 hour.

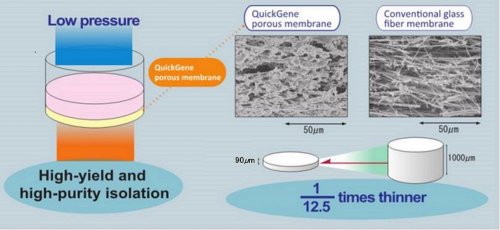

Patented porous membrane

The nucleic acid adsorptive medium used in QuickGene-Auto240L is a porous membrane developed through application of advanced polymer membrane production technology. It is only 80μm thick, making it incomparably thinner than conventional grass fibers. Because of the outstanding adsorptive and desorptive performances of the membrane, nucleic acid can be rapidly and reliably isolated at low pressure without being damage, which realizes high-quality nucleic acid isolation.

High-yield, High-purity

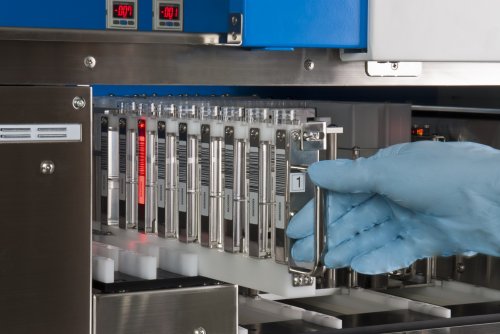

* Full barcode reading system
Read and record barcodes on both primary tubes and DNA strage tubes by the internal barcode scanners. Separate log for multiple operator or and multiple applications is allowed. Sample IDs and operation history can be automatically saved by the machine and electronic file can be exported by USB memory stick

* UV irradiation
Built-in UV Lamp enables decontamination and minimizes the sample cross-contamination.

* Sample liquid level detection
Provide liquid level detection for accurate pipetting using positive air pressure.
